How 3D Scanning and Reverse Engineering Bring Obsolete Parts Back
Share
When an original part is discontinued, damaged, or modified beyond recognition, the usual replacement process breaks down. There may be no drawing, no CAD file, and no reliable dimensions to order from. Sometimes the only useful reference is the part sitting on the bench.
That is where 3D scanning and reverse engineering earn their place. A scanner can capture a dense digital record of an existing shape. Reverse engineering turns that record into an intentional model that can be measured, modified, validated, and manufactured.
The distinction matters. A scan is data. A production-ready part still requires engineering judgment.
What a 3D scan actually gives us
A modern scanner records the visible surface of a physical object as millions of points. Those points are processed into a polygon mesh, which is a highly detailed digital representation of the captured surface.
For a complex casting, molded duct, trim panel, bracket, or assembly interface, that mesh can preserve relationships that are difficult to measure with calipers alone. It can show compound curvature, mounting locations, clearances, and how several features relate to one another in space.
It can also capture things we do not want to reproduce:
- Wear, dents, distortion, and heat damage
- Hand-fitted repairs and previous modifications
- Surface texture, casting irregularities, and accumulated coatings
- Misalignment caused by how the part was supported during scanning
- Missing geometry in hidden or inaccessible areas
That is why sending a raw mesh directly to a printer or machine is rarely the whole answer.
Reverse engineering is where the design becomes intentional

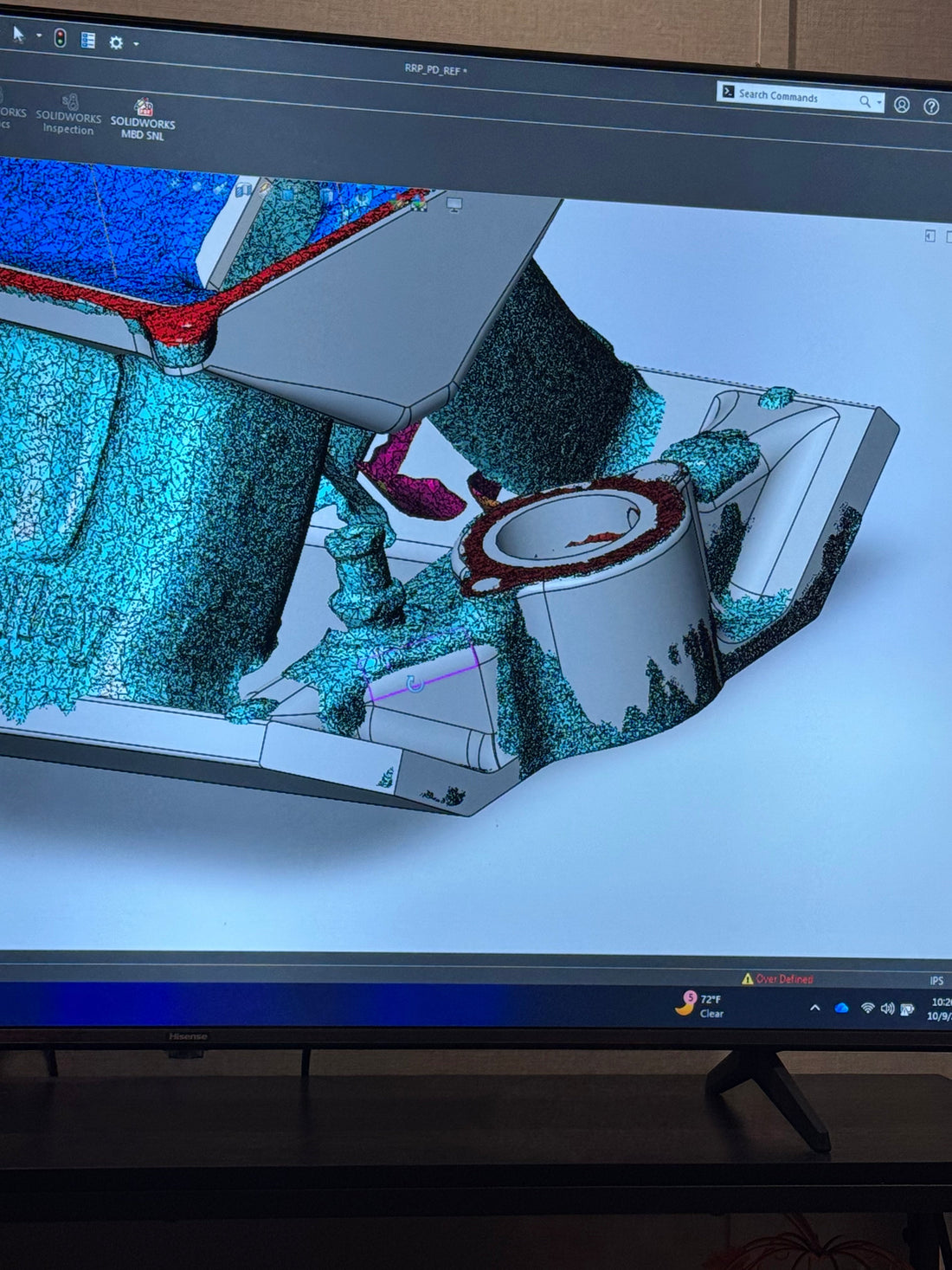

Once the scan is cleaned and aligned, we use it as a reference inside CAD. The next step is to identify what the original part was trying to do.
Which holes share a centerline? Which faces need to seal? Was that wall meant to be straight before years of heat cycles moved it? Does a mounting surface need to match the original exactly, or should the replacement correct a known fitment problem?
Depending on the project, the rebuilt model may use a combination of:
- Reference planes, axes, and datum geometry
- Recognized holes, cylinders, slots, and planar faces
- Reconstructed surfaces for organic or freeform shapes
- Parametric features that can be edited later
- Design changes for strength, access, sealing, or manufacturing
The goal is not always a perfect digital copy. The goal is a model that preserves critical fit while removing damage, restoring design intent, and preparing the part for a realistic manufacturing process.
The basic scan-to-part workflow
- Define the function. Before scanning, identify the interfaces and dimensions that control whether the replacement works.
- Prepare and capture the part. The part is positioned so important surfaces are visible. Multiple scan passes may be needed.
- Clean and align the data. Noise, fixtures, and irrelevant geometry are removed. Scan sections are aligned into a usable reference.
- Build the CAD model. Critical features are reconstructed and the design is made editable and manufacturable.
- Compare CAD to the scan. Deviation checks help confirm that important regions match the physical reference within the needs of the application.
- Prototype and test fit. A lower-cost prototype can expose access, tolerance, or assembly issues before final production.
- Release the production method. The final design is adjusted for machining, additive manufacturing, fabrication, molding, or another suitable process.
Where this helps most
Reverse engineering is especially useful when traditional drawings do not exist or do not tell the full story. Common examples include:
- Obsolete automotive and motorsports components
- Custom intake, ducting, and packaging interfaces
- Complex cast or molded shapes
- Brackets that must locate from several existing features
- Replacement covers, bezels, trim, and interior pieces
- Shop fixtures, tooling, and adapters built around existing equipment
Scanning can also help when the new design is not a copy at all. Capturing an engine bay, chassis area, or neighboring components can provide a digital envelope for designing a new part around real-world constraints.
What we need from a customer
A productive project starts with more than the physical sample. We need to understand what must remain unchanged and what can improve.
Useful information includes the vehicle or machine application, known failure points, required mating parts, expected temperature and loads, target quantity, preferred material, and the intended manufacturing process. If the original part is damaged, photos or measurements from a second example can help separate original geometry from wear.
Some projects only need a faithful replacement. Others benefit from thicker walls, improved mounting, added clearance, revised hose connections, or a completely different production method. Those decisions should happen before the model is treated as finished.
Bring the part, not a perfect drawing
If you have an obsolete or one-off component and no usable CAD, that does not automatically stop the project. The physical part, its mating components, and a clear explanation of the problem may be enough to build a path forward.
Rapid Race Products provides 3D scanning, reverse engineering, CAD modeling, prototyping, and low-volume production support. Tell us what the part does, what needs to change, and how many you ultimately need. We can help determine whether a scan-led workflow makes sense before committing to the full project.
